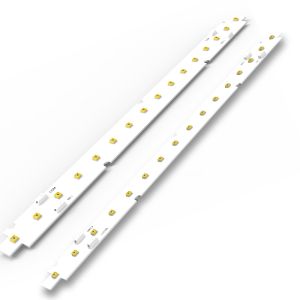

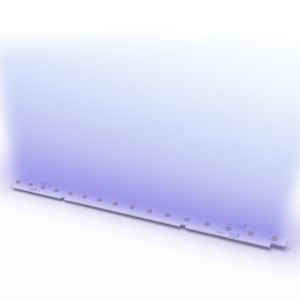

UVC Germicidal Light 24V LED Module for Tube Troffer Panel Linear Light

Feature

1. Peak wavelength: 265 ~ 285nm

2. Radiant flux: 192 ~ 216mW

3. Forward voltage: 24VDC

4. Solutions for Linear light / Troffer

5. Poke in wiring connectors

Dimension

Length: 280mm / 11inch

Width: 20mm / 0.79inch

Height: 4mm / 0.16inch

Characteristics

1. Absolute max current: 400mA / CH

2. Rated power: Typical power (±10% tolerance)

3. IP grade: IP20

4. Storage temperature: -30 ~ +85℃

5. Operation temperature: -30 ~ +80℃

6. Beam angle: 120 deg

7. Connectors: poke-in type

Package

PVC tube: 1pc led module

PVC weight: 0.028kg/pc

Dimension: 300*2688mm

Carton: 800pcs led module

Gross weight: 22kg/ctn

Dimension: 700*320*320mm
