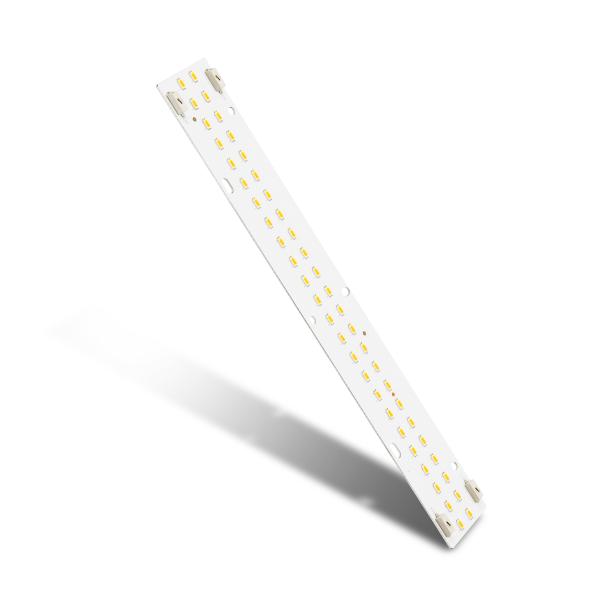

RELIGHT 280*40mm linder SMD LED module for liner light High efficiency solution with samsung LED 5630

Quick details

Detailed parameters:

Advantage:

•  High efficiency up to 200lm/W
•  Various CCT available:2700/3000/3500/4000/5000/5700/6500K
•  CRI:80 90 95
•  Macadam 3/5 steps color bin
•  Solutions for Linear light/Troffer light/Panel light/Wall light
•  Poke in wiring connectors
• Zhaga standard

Product details:

Characteristics

• Input Voltage 200~240Vac
• Frequency 50/60Hz
• Protection IP20
• Surge level 2.0KV
• Hi-pot 1.5KVac
• THDI <10%
• Storage temperature -30-85℃
• Operation temperature -30-90℃(Ts of led components)
• Beam Angle 120 deg

Application

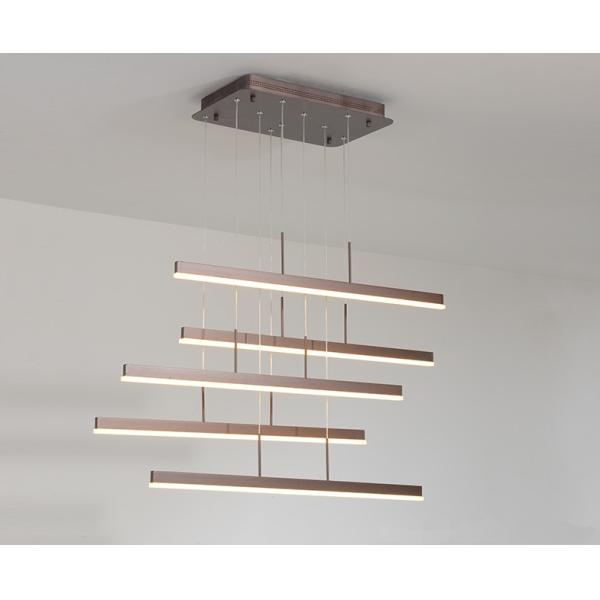

• Liner light
• Pannel light

Our Factory:

ABOUT US

Shenzhen Relight Technology Co., Ltd. is professional in the designing, producing LED Module, LED Strip and finish LED  products based on specific project. Relight is exporting to the global customers, focusing on the main markets of Australia, Europe and North America. Relight factory has dust free anti-static room, fully-automatic manufacturing line and high performance testing equipment, which is able to deliver to the customers within 2 weeks. Relight also own its strong develop and research ability with own patents in LED industry.

Relight is also committed to provide more practical, comfortable, simple, and artical light products and solutions.We seek the research and design of “lighting module” products, thus optimizing either consuming electric products, domestic products or healthcare and commercial products.

Based on a thorough understanding of the customer needs, Relight engineers can design the products according customers idea and comments till the satisfied products out. RELIGT solution will be your best one, and you can do now with starting here.
