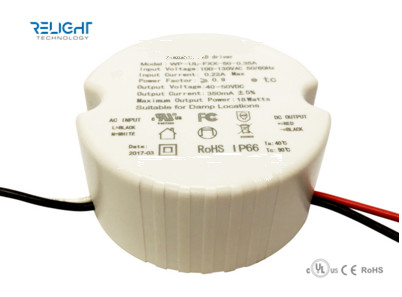

Triac Dimming 350mA LED Round Power Supply
Quick details:
| Model Number | RL-ZM20-40 | | Input Voltage | 120V ac | | Output Power | Min: 13.3W Max: 17.1W | | Output Voltage | 32-38V dc | | Output Current | Min: 350mA Max: 450mA , can output current in 20mA increments | | Flicker Free | No | | Efficiency | 83% | | PF | >0.9 | | Current Accuracy | 5% | | THD | <20% | | Dimensions | φ2.56*H0.99 inches(φ*H:65*25mm) | | Certification | UL cUL FCC Class 2 RoHS | | Material | Plastic and water tight with glues | | Dimmable Function | Triac dimmer compatible range from 5%~100% | | Protection | Over-Voltage Protection Over-Current Protection Short-Circuit Protection | | Enviromental Condition | Operating Condition: -25℃~40℃/10%RH~80%RH Storage Condition: -40℃~85℃/5%RH~90%RH Ta: 40°C/Tc: 80°C |
|
Features:
- 120Vac Input
- Constant Current
- Isolated solution for class I luminaires
- IP66
- Plastic housing
- UL cUL FCC Class 2 RoHS
- Triac dimmable
- Short circuit protection
- Over current protection
- Over voltage protection
- Revoked self-recovery
- 50,000 hours lifespan design
- 5 Years Warranty
Application:
Supple mentary explanation:
1.All performance parameters are the typical value in the case of
temperature 25 ℃, 100% load measurement, unless otherwise
specified.
2. LED driver is a component of whole lamp in conjunction with the
use of terminal equipment, EMC performance due to the impact of LED
lighting and wiring, terminal equipment manufacturers need to
re-confirm the entire device EMC
Competitive Advantage:
Lifespan refered diagram:
Packaging details:
Carton Carton thickness:6mm
Inner size:410x310x340mm
Outside size:420*320*350mm
EPE EPE size:400x300x5mm
Blister Material: transparent PVC
Thickness:0.35mm
Outside size:410x310x30mm
Packing quantity 11 layers per carton. 20pcs per layer 220pcs per
carton
